Clutch brake hexagonal housing
Pre-assembled combined clutch brake units with hexagonal housing.
Enquire NowKey features
- Ease of fitting
- Ease of replacement
- Good heat dissipation
- High cycle times
- Voltage options
Product description
The type 54 clutch brake hexagonal housing is usually used in belt or chain driven applications where the rotary motion is derived from a remote location or from a co-axially coupled motor.
They are used when the application is required to run continuously and the unit which it is driving it has to have a controlled stop and start action.
The centre line height of clutch brake hexagonal housing units, fitted with feet, corresponds with standard IEC motor frame sizing.
Enquire nowKey features
- Ease of fitting
- Ease of replacement
- Good heat dissipation
- High cycle times
- Voltage options
Product description
The type 54 clutch brake hexagonal housing is usually used in belt or chain driven applications where the rotary motion is derived from a remote location or from a co-axially coupled motor.
They are used when the application is required to run continuously and the unit which it is driving it has to have a controlled stop and start action.
The centre line height of clutch brake hexagonal housing units, fitted with feet, corresponds with standard IEC motor frame sizing.
Enquire now
To download the technical drawings for this product fill in your details below and we will send you a link to the files.
"*" indicates required fields
Clutch brake hexagonal housing technical drawing

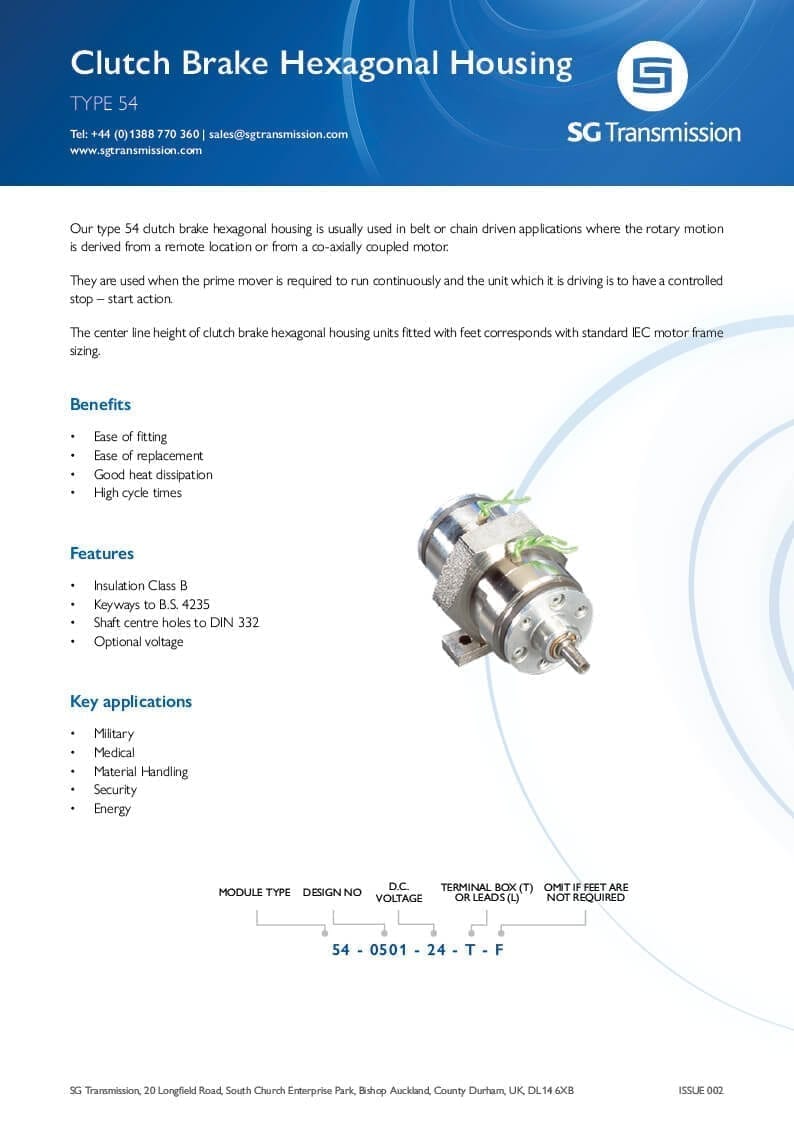

See related downloads for full datasheet
Download clutch brake hexagonal housing drawing Download double clutch brake hexagonal housing drawing| Size | Torque TS (Nm) | Max P20 (W) | B | C1 | C2 | D1 J6 | E6 K6 | G | H1 | H2 | K | L | N3 | R | S | S4 | U6 | V1 | V2 | W2 | X | Y | Z | Design no. (clutch) | Design no. (double clutch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 03 | 1.2 | 8 | 110 | 36 | - | 6 | 18 | 0.15 | 30 | 55 | 70 | 24 | - | - | 12 | 62 | - | - | M6 | 9 | - | 51 | 15 | 0301 | 0302 |
| 05 | 3 | 10 | 144 | 50 | 48 | 7 | 30 | 0.20 | 40 | 70 | 90 | 30 | 24 | - | 18 | 53.5 | 3xM3 | 6.5 | 4.5 | 12 | 1.5 | 65 | 60 | 0501 | 0502 |
| 06 | 8 | 16 | 195 | 55 | 75 | 11 | 38 | 0.20 | 55 | 90 | 107 | 54 | 33 | 133.5 | 25 | 70 | 3xM4 | 14 | 7 | 19.5 | 2 | 80 | 90 | 0601 | 0602 |
