Clutch brake extruded housing
Pre-assembled combined clutch brake units with extruded housing.
Enquire NowKey features
- Ease of fitting
- Ease of replacement
- Good heat dissipation
- High cycle times
- Voltage options
Product description
The type 54 clutch brake extruded housing is usually used in belt or chain driven applications where the rotary motion is derived from a remote location or from a co-axially coupled motor.
A clutch brake extruded housing is used when the prime mover is required to run continuously and the unit which it is driving is to have a controlled stop and start action.
Enquire nowKey features
- Ease of fitting
- Ease of replacement
- Good heat dissipation
- High cycle times
- Voltage options
Product description
The type 54 clutch brake extruded housing is usually used in belt or chain driven applications where the rotary motion is derived from a remote location or from a co-axially coupled motor.
A clutch brake extruded housing is used when the prime mover is required to run continuously and the unit which it is driving is to have a controlled stop and start action.
Enquire now
To download the technical drawings for this product fill in your details below and we will send you a link to the files.
"*" indicates required fields
Clutch brake extruded housing technical drawing

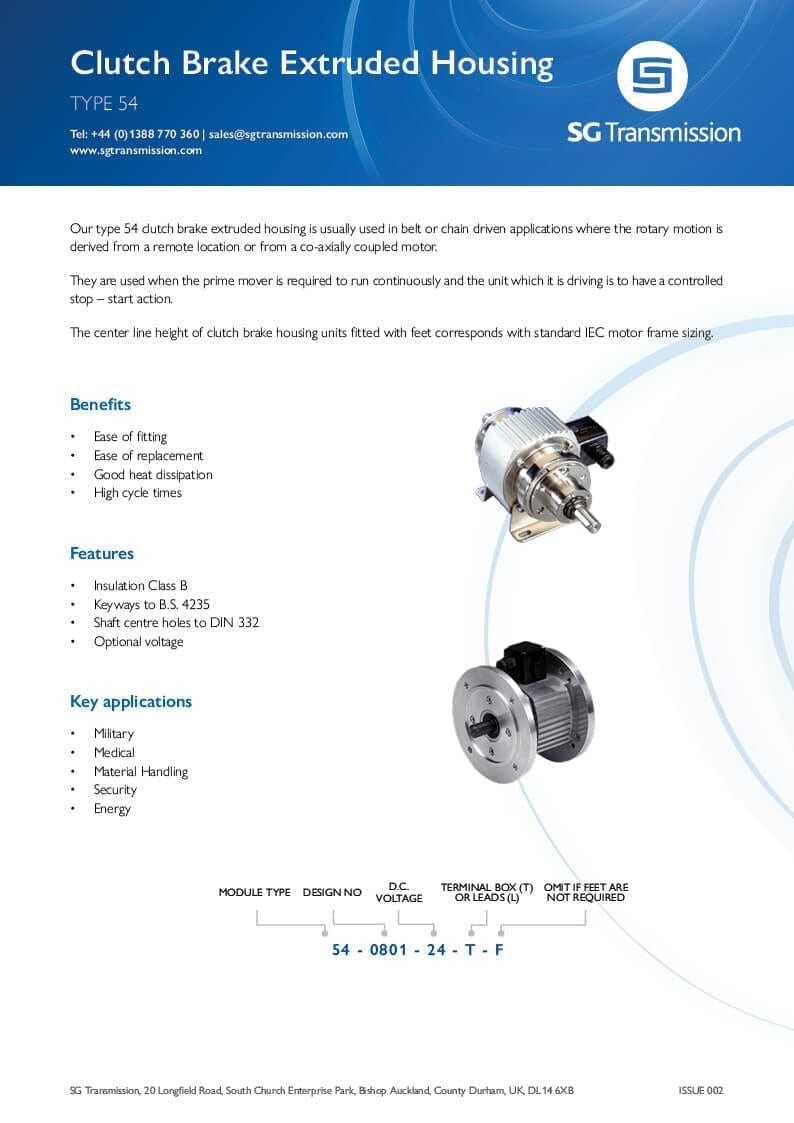

See related downloads for full datasheet
Download clutch brake extruded housing drawing Download double clutch brake extruded housing drawingSee related downloads for full datasheet
| Size | Torque TS (Nm) | Max P20 (W) | B | C1 | C2 | D1 J6 | E6 K6 | G | H1 | H2 | K | L | N3 | R | S | S4 | U6 | V1 | V2 | W2 | X | Y | Z | Design no. (clutch) | Design no. (Double clutch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 08 | 16 | 18 | 230 | 65 | 88 | 14 | 45 | 0.2 | 65 | 120 | 127 | 64 | 37 | 94.5 | 30 | 84 | 3xM4 | 14 | 8 | 25 | 3 | 90 | 105 | 0801 | 0802 |
| 10 | 32 | 31 | 283 | 80 | 110 | 19 | 55 | 0.2 | 80 | 158 | 155 | 76 | 47 | 107.5 | 40 | 105 | 4xM4 | 16 | 9 | 30 | 3 | 110 | 130 | 1001 | 1002 |
| 12 | 65 | 32 | 344 | 105 | 135 | 24 | 64 | 0.3 | 90 | 170.5 | 185 | 101.5 | 52 | 120.5 | 50 | 131 | 4xM4 | 20 | 11 | 40 | 3 | 140 | 160 | 1201 | 1202 |
